Single boiler systems & multi-boiler systems
The integration of heat generators into single-boiler or multi-boiler systems requires careful planning and execution. Choosing the right boiler, integrating a buffer cylinder or a low loss header, ensuring efficient regulation and control, and guaranteeing operational safety are crucial for an efficient and reliable heat supply tailored to specific application requirements.
Information about determining the boiler and system output

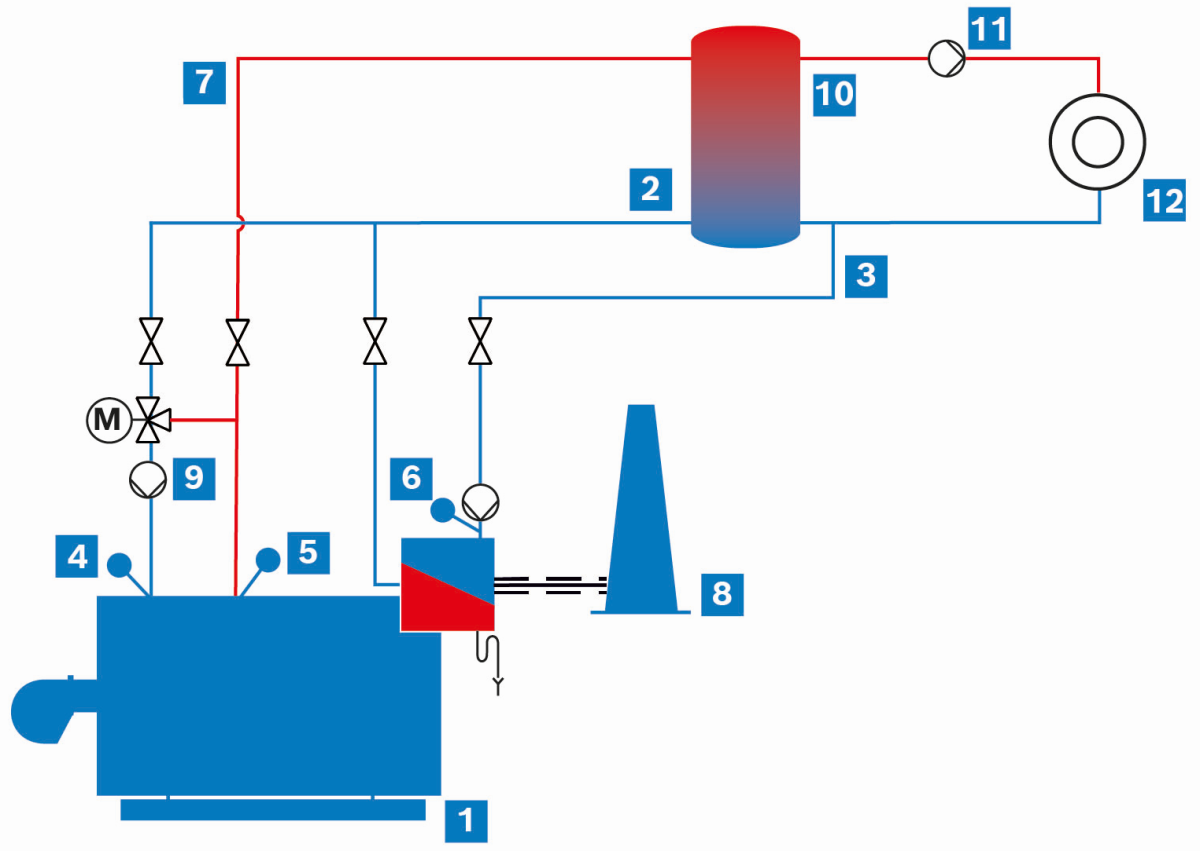

Diagram of a single-boiler hot water system
|
|
Hot water boiler |
|
|
Return |
|
|
Cold return < 50 °C |
|
|
Return temperature |
|
|
Flow temperature |
|
|
Inlet temperature of the flue gas heat exchanger |
|
|
Flow |
|
|
Chimney |
|
|
Boiler circuit pump |
|
|
Low loss header |
|
|
Mains-powered circulation pump |
|
|
Heat consumer |

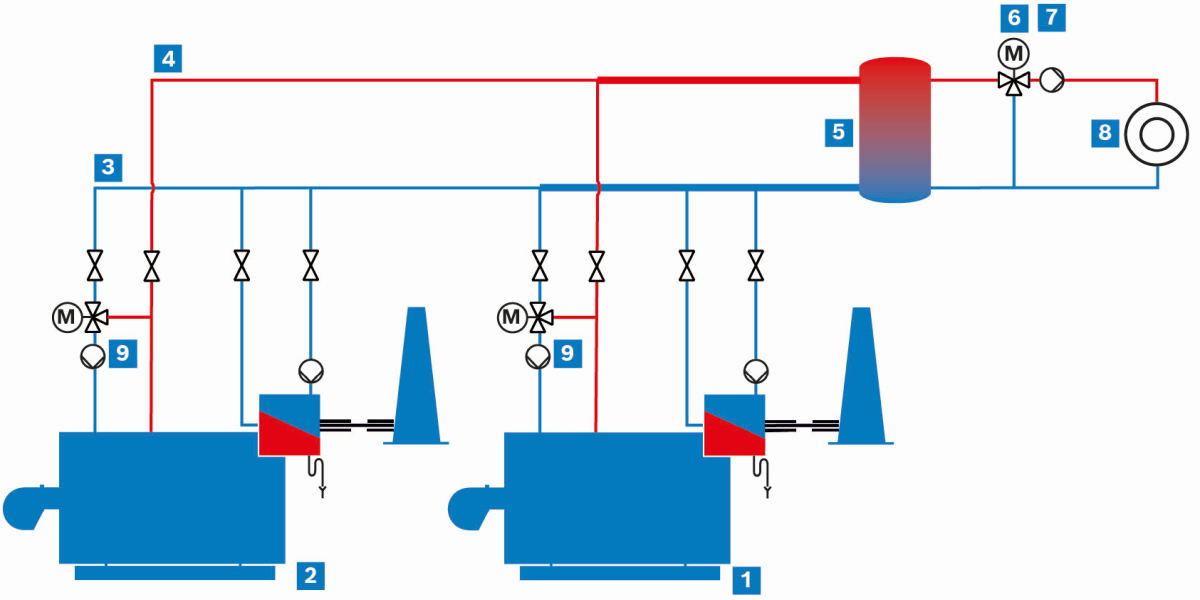

Hot water system as a multi-boiler system with low loss header
|
|
Hot water boiler 1 |
|
|
Hot water boiler 2 |
|
|
Return |
|
|
Flow |
|
|
Low loss header |
|
|
Three-way valve for the flow temperature control |
|
|
Mains-powered circulation pump |
|
|
Heat consumer |
|
|
Boiler circuit pump |
