Hydraulic integration

When integrating heat generators and heat consumers into a hydraulic network, it is always necessary to first consider the different requirements of the functional areas.

The functional areas are divided into:

• Heat generator
• Heat network and heat cylinder
• Heating distribution units and heat consumers

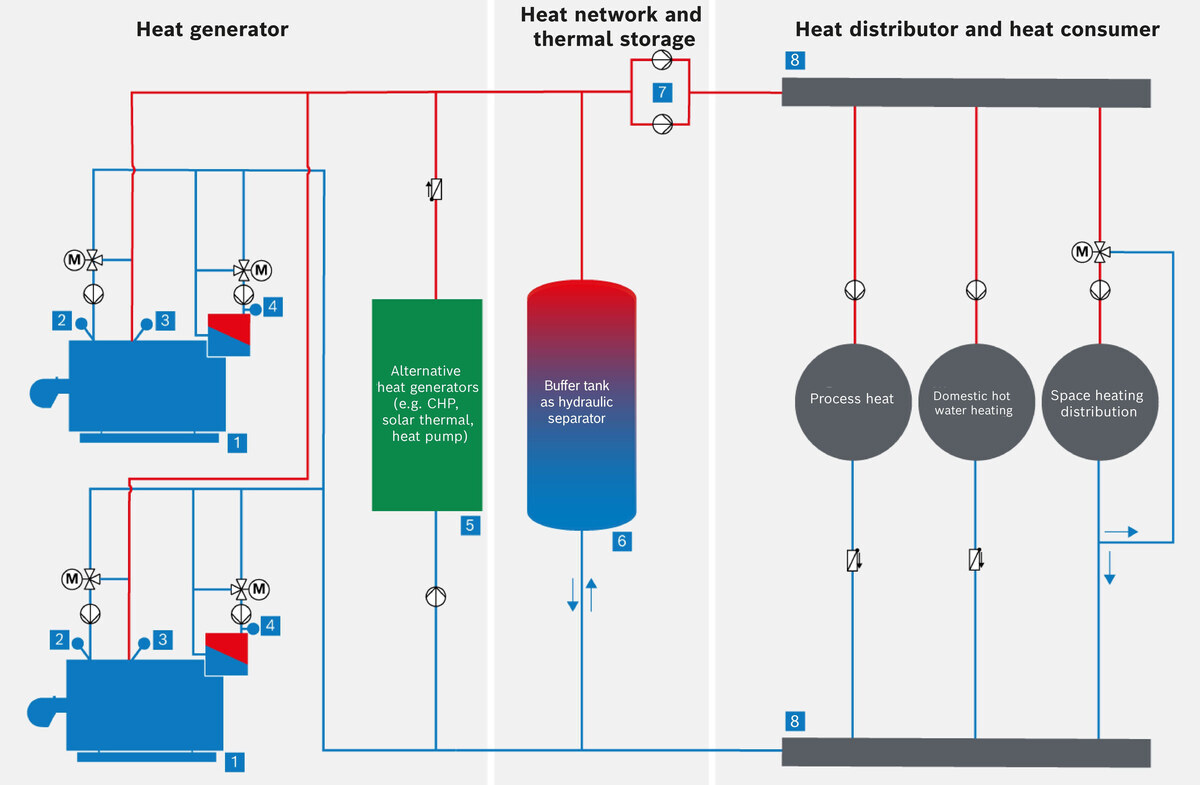

Functional areas of a hydraulic network
