Heat loss
Pipework and valves
![Savings factor due to insulation and heat losses in pipework](/images/WaermeVerluste_Diagramme_umgesetzt_Tools_EN.png)

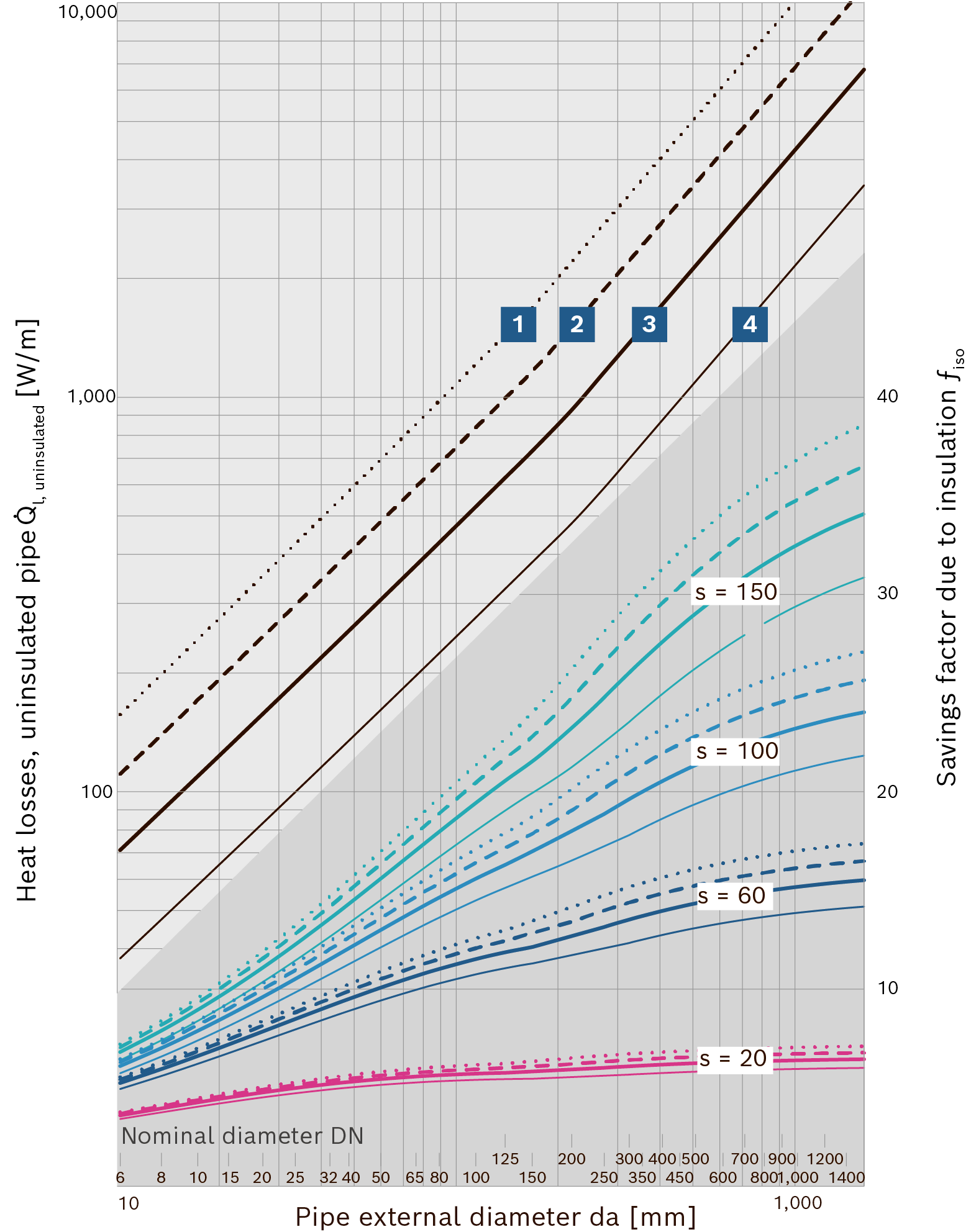

Savings factor due to insulation and heat losses in pipework
|
Medium temperature: 250 °C (. . . . . .) |
|
Medium temperature: 200 °C (- - - -) |
|
Medium temperature: 150 °C (_______) |
|
Medium temperature: 100 °C (_______) |
|
Insulation thickness s = 150 mm |
|
Insulation thickness s = 100 mm |
|
Insulation thickness s = 60 mm |
|
Insulation thickness s = 20 mm |
Container
![Heat loss via the insulated area of the container or boiler surface](/images/WaermeVerluste_Fl_chenbezogen_ueber_isolierten_Bereich_EN.png)

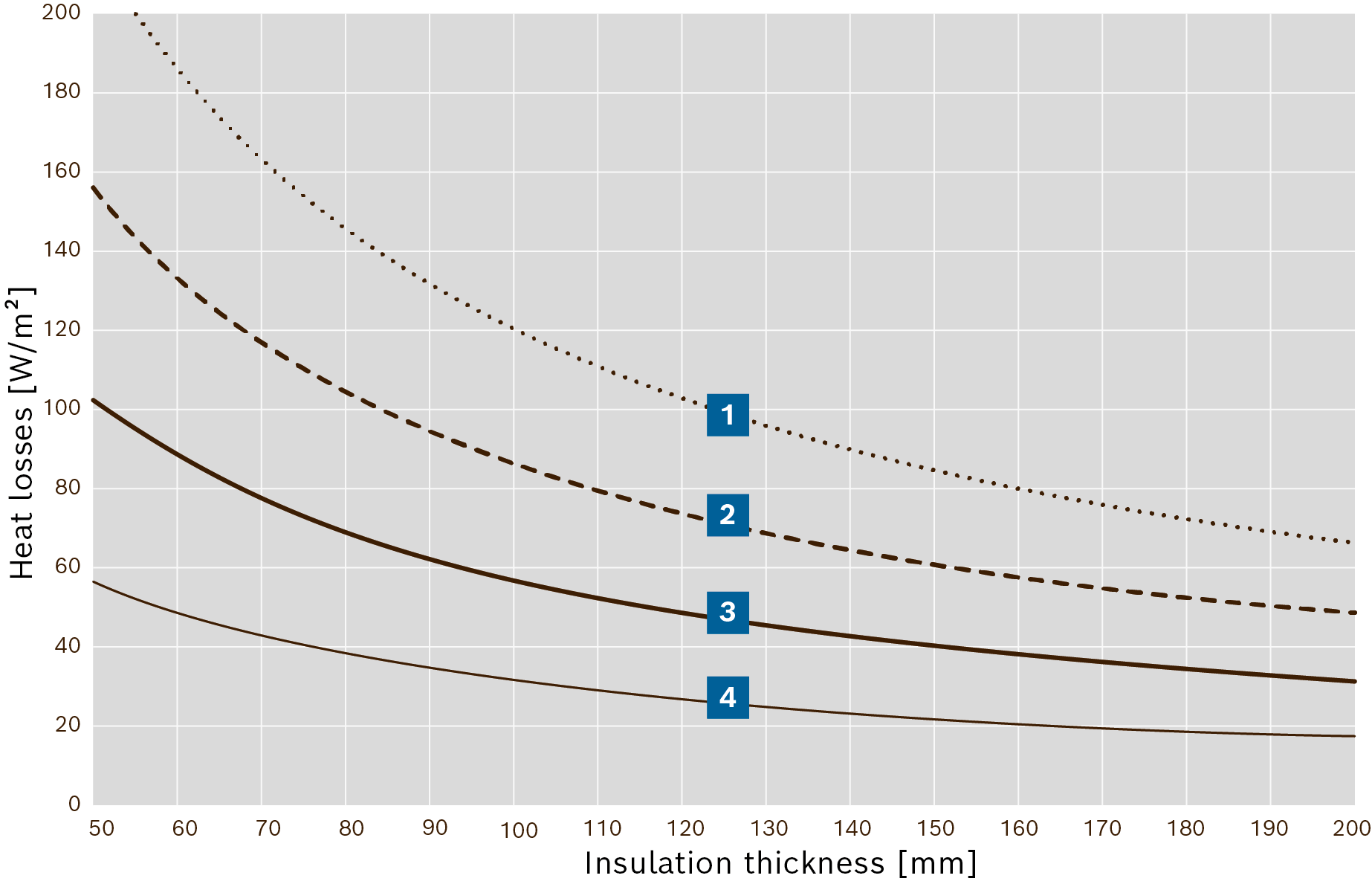

Heat loss via the insulated area of the container or boiler surface
|
Medium temperature: 250 °C |
|
Medium temperature: 200 °C |
|
Medium temperature: 150 °C |
|
Medium temperature: 100 °C |
